ALBINO BUILD LOG PART 2

split

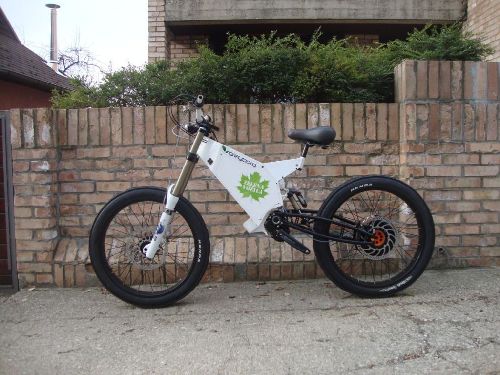

Wheel is on bike. Still some trueing, plumbing, and wireing...

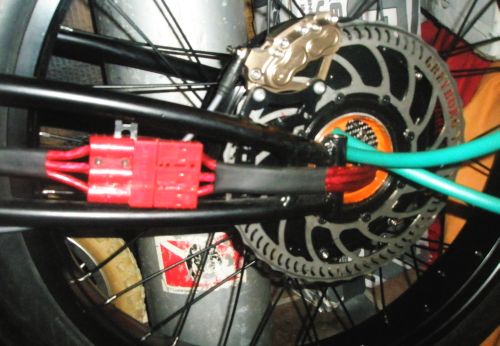

Custom tripple anderson connector



split

STATOR FINALY FINISHED

Left side.

Halls, PTC for Kelly and NTC for pump control

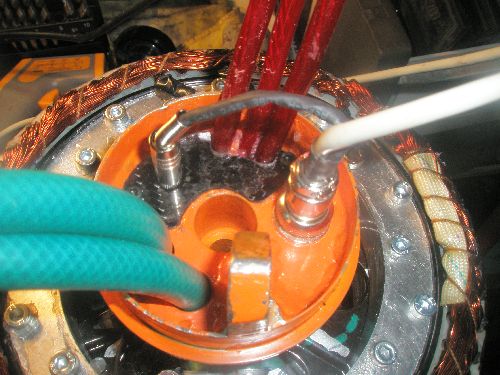

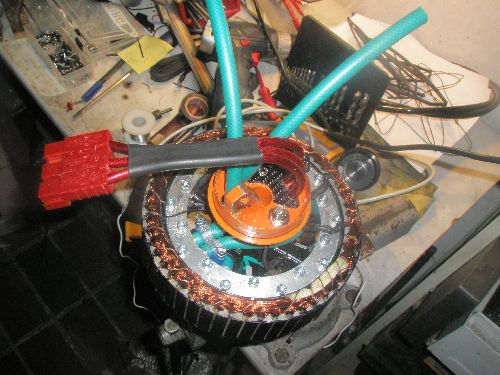

Right side. 25mm2 phase wires, 3/8" cooling pipes, 7pin

connector for halls and thermo sensors, 3pin connector

for temp controll/calibration

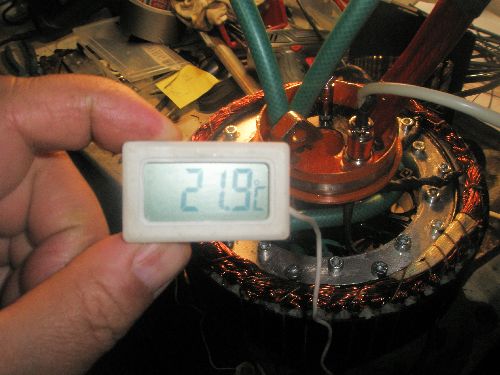

1st Thermometer connected

split

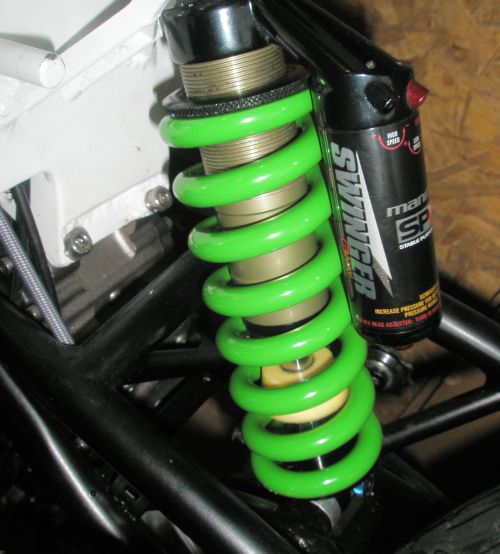

Third and final spring.

10mm wire dia, 7 active turns, 155mm long, 56mm outher dia.

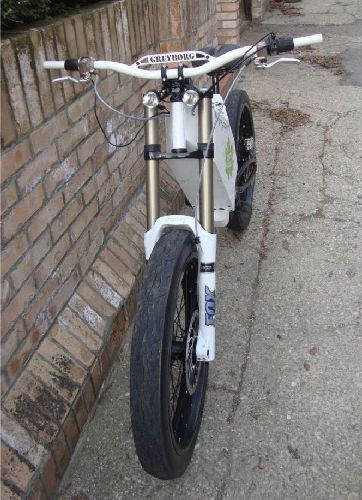

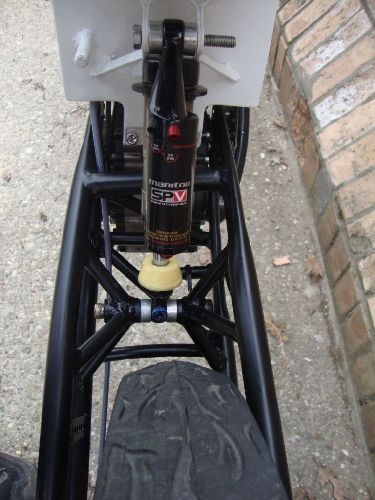

Now the suspension is perfect. (for a 110 kg rider :))

split



split

LCHUB motor almost finished. Stil some minor work inside the motor

Two 8mm pipe connectors, 8 pin connector for hall and temp sensorsž

Epoxy cover for phase wires is missing.

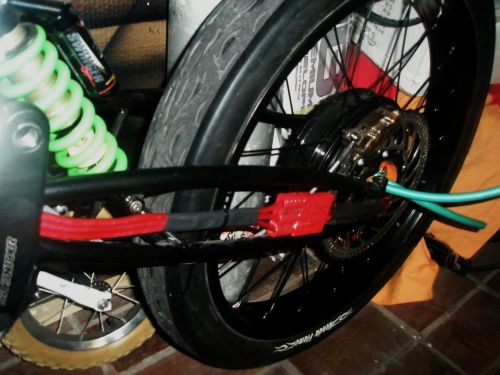

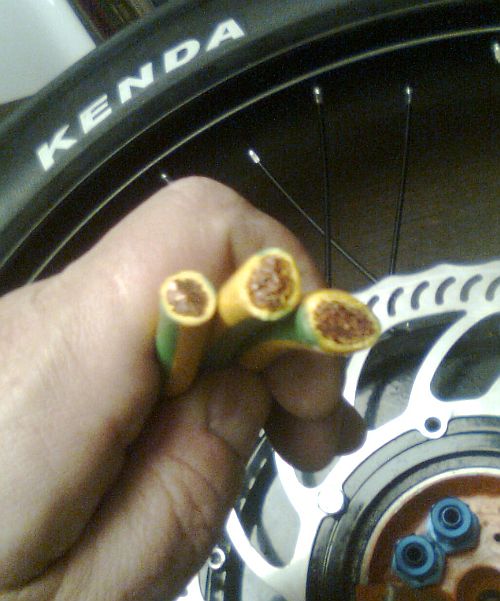

50mm2 phase wires. There are plenty of room for even bigger

but motor coils are 22x1mm2 so this is enough

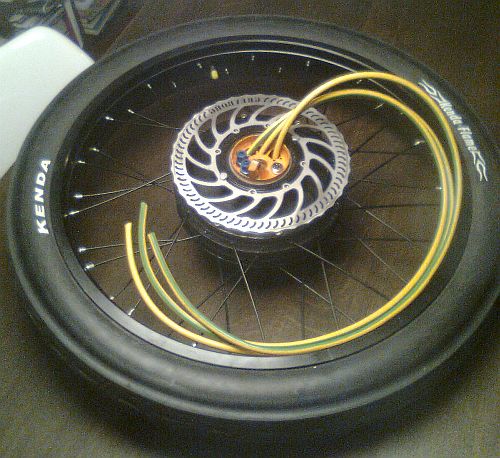

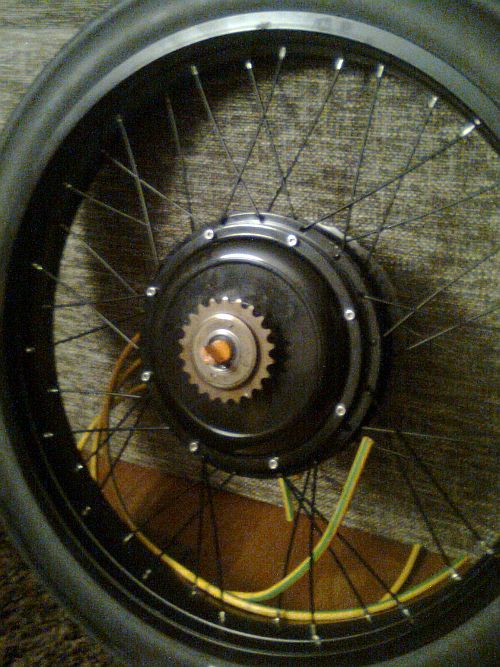

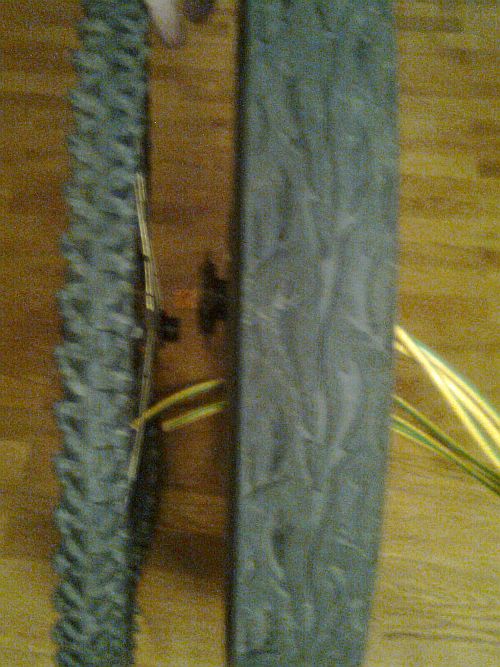

Right side with 22 tooth freewheel to match SR Suntour V-BOXX



Left tyre is 26" x 2,35"

split

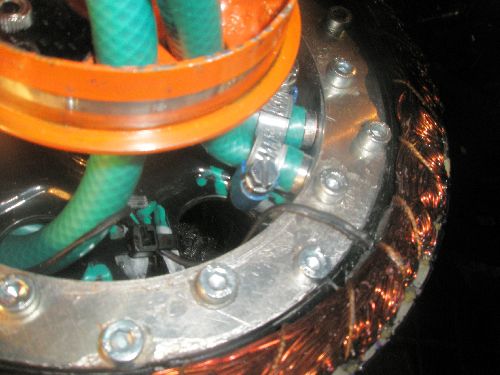

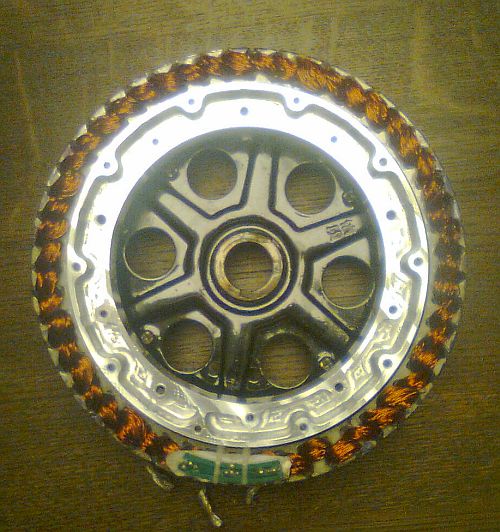

Cooling channels finished.



split

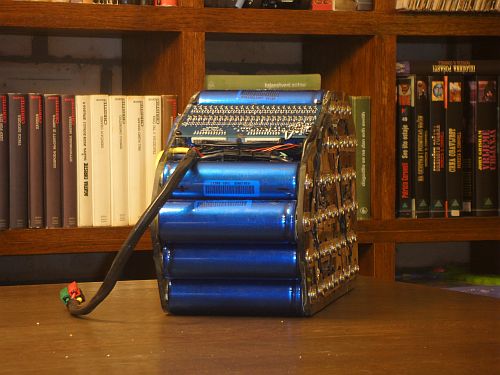

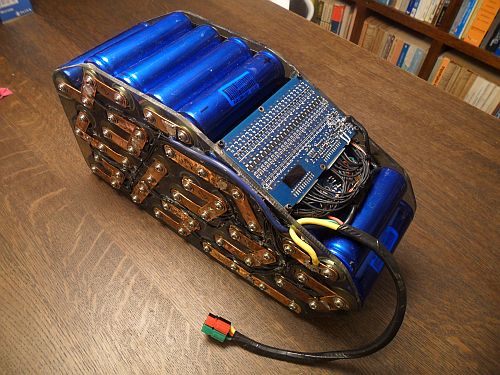

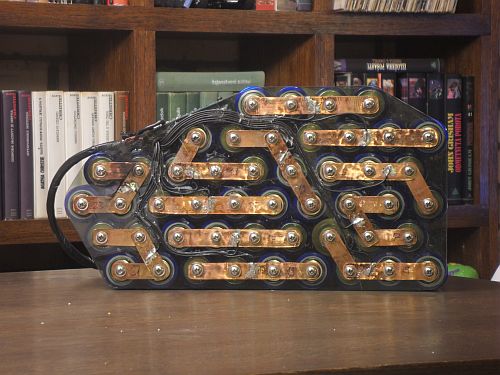

New pack (old pack but with new BMS)

BMS is inside the pack and now I have plenty of room for

other things...

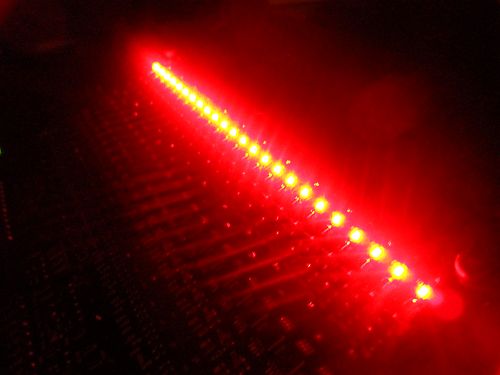

After allmost a year cells are completly disbalanced and it

took me ,with 2A charger, 5 days to get all lights on. :)

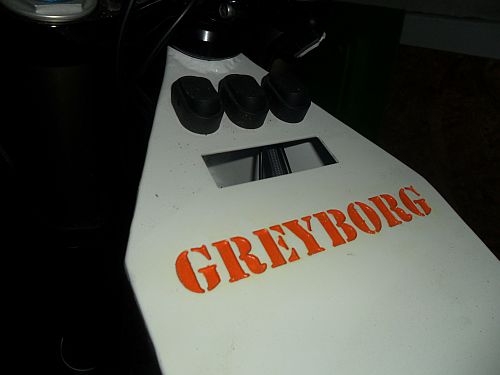

The Greyborg letters coloured in bright orange.



logo



split

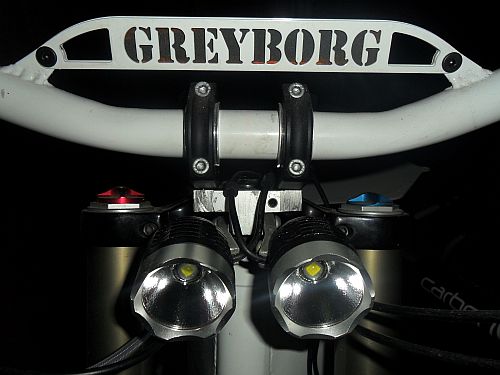

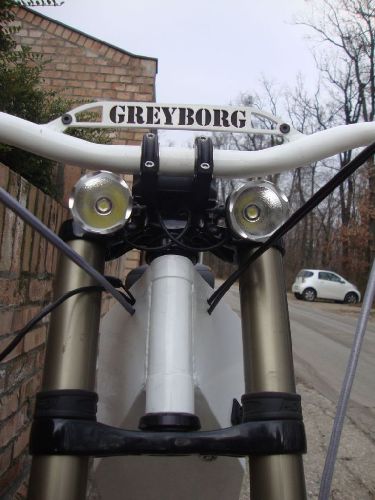

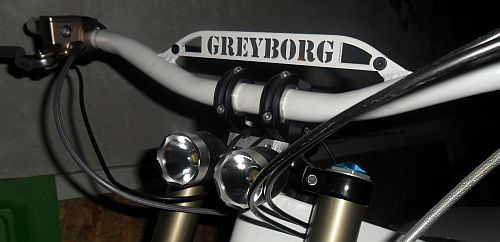

2x12w led lamps installed

LED lamps

LED lamps
