FUTURE PROJECTS, SKETCHES, IDEAS...

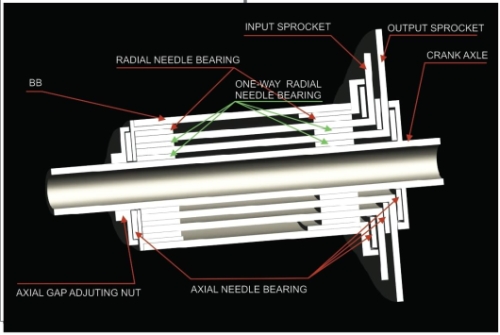

Dual coaxial freewheel BB

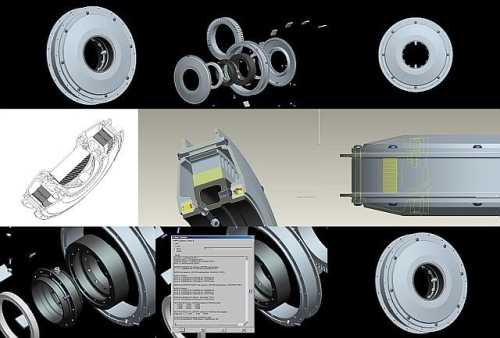

Liquid cooled hub motor. This is some of the first sketches.

Simmilar construction is latter used in Albino liquid cooled hub motor.

This sketch is based on Crystalyte X5xxx.









Steer-by-wire bicycle.

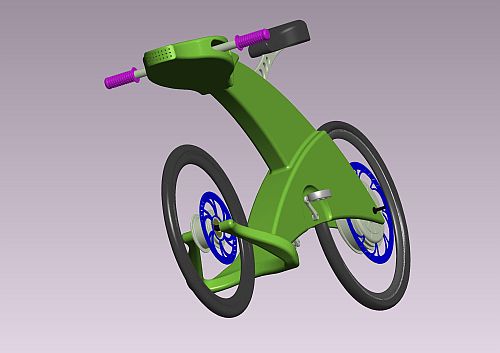

3 piece frame out of polypropilene injection moulded.

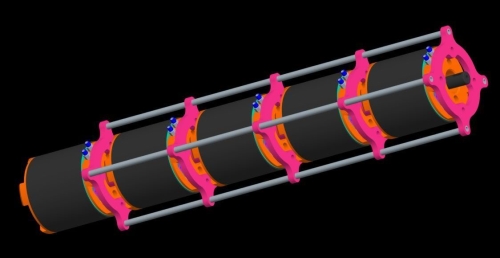

Colossus motors.

Complete developement decription on ENDLESS SPHERE FORUM

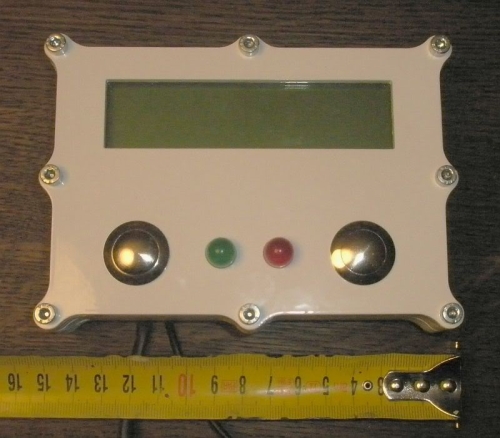

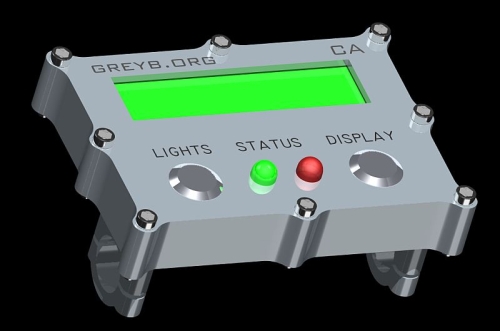

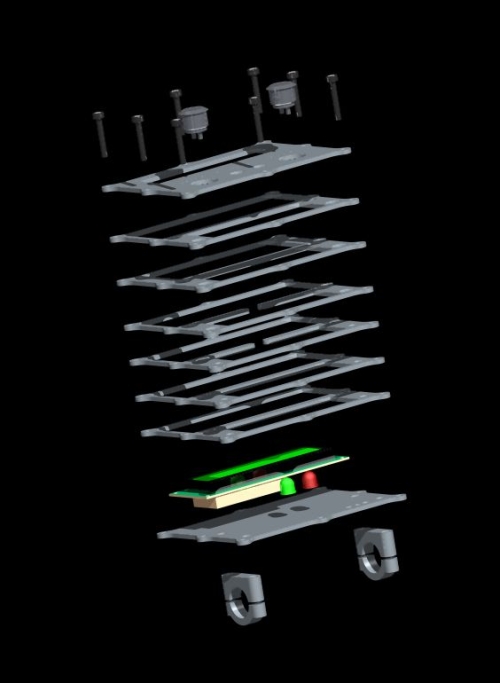

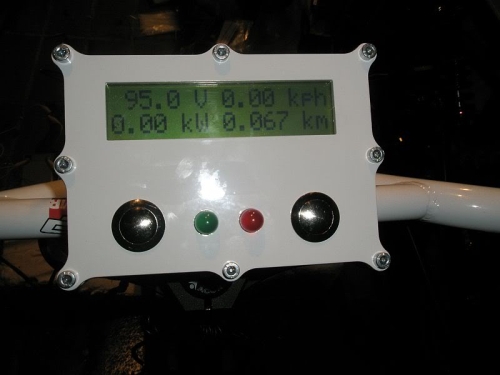

Aluminium case for big Cycle analyst from ebikes.ca

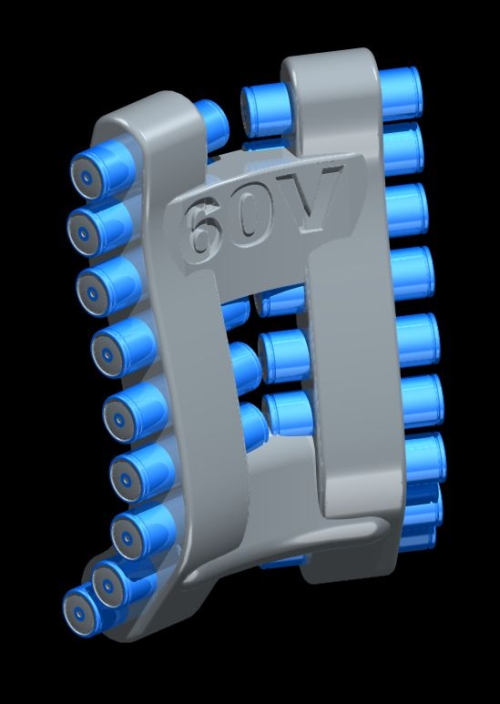

Battpack.

Range extender on your backpack.

Used on commEncial bike



Adapter for bigger phase wires for Crystalyte series 5 motors

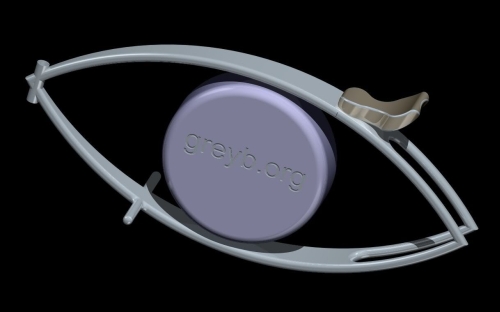

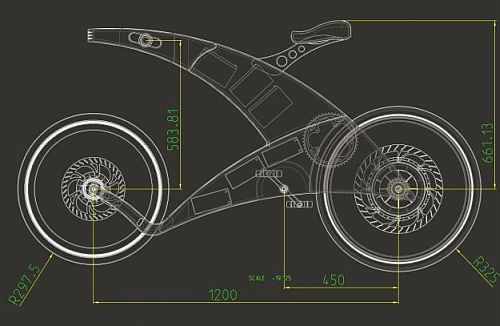

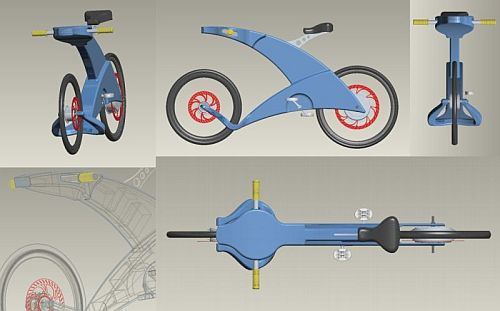

Electirc cruser project.

Still in drowing phase

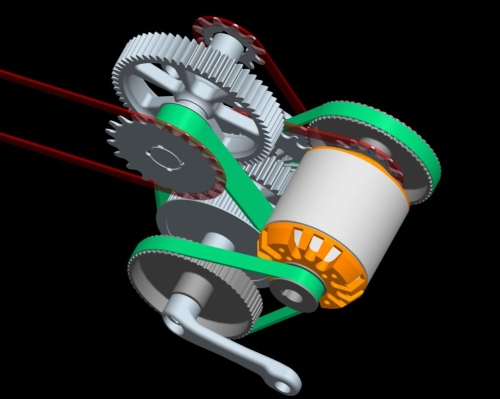

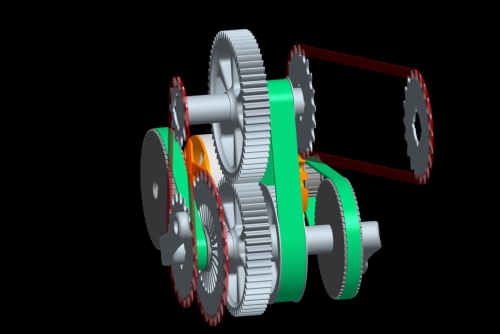

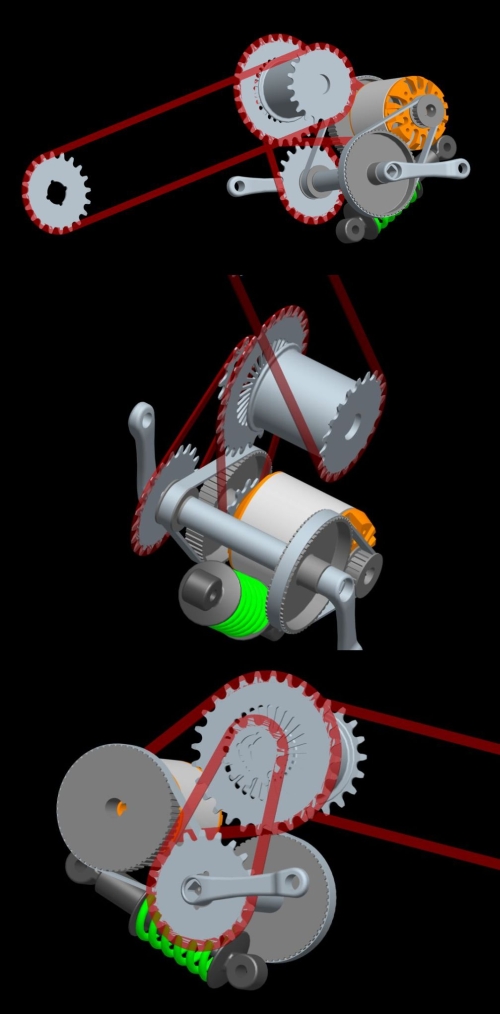

RETRO DIRECT RC DRIVE

Thanks Miles Halon for inspiration.

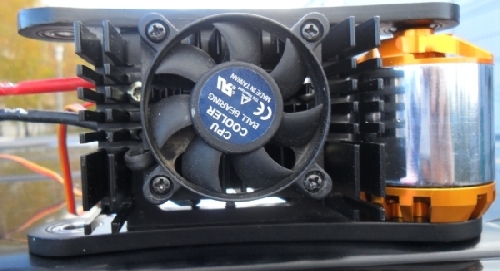

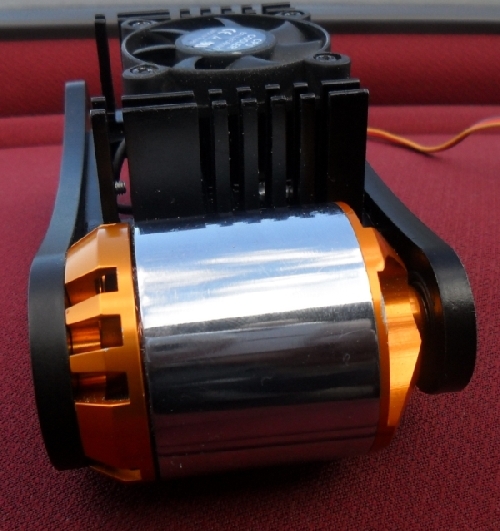

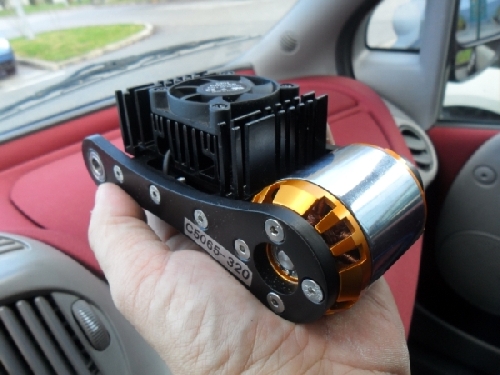

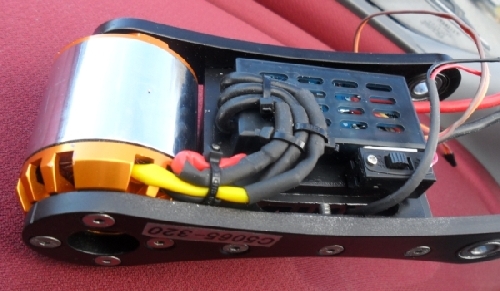

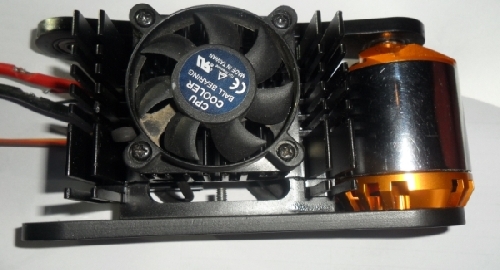

KiloKilo drive.

Fristion bicycle drive under 1kg over 1kW

Still in test. I am not satisfied with results.





One old idea, axial flux 24" bldc motor with integrated rim.

The torque will be nice but have more then few construction downsides.

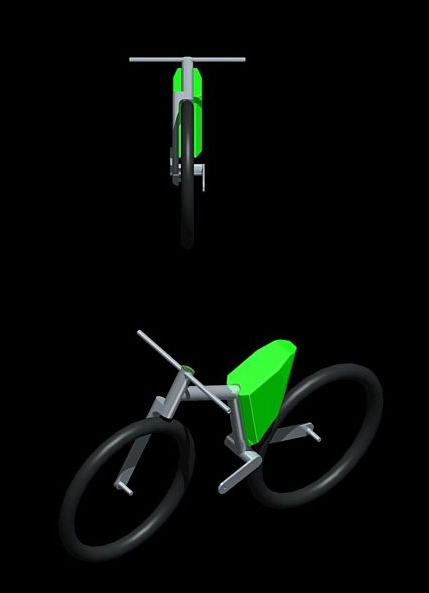

Unsprung electric bike

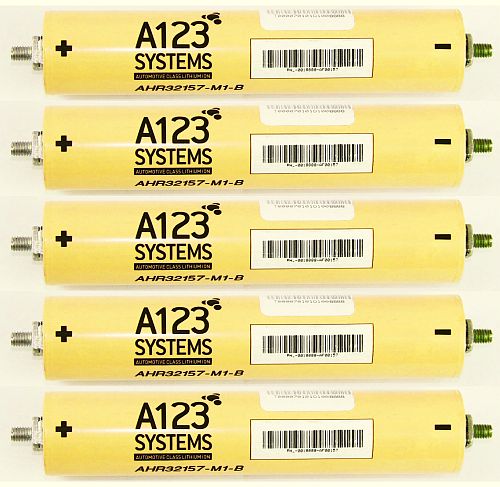

32157-M1-B
