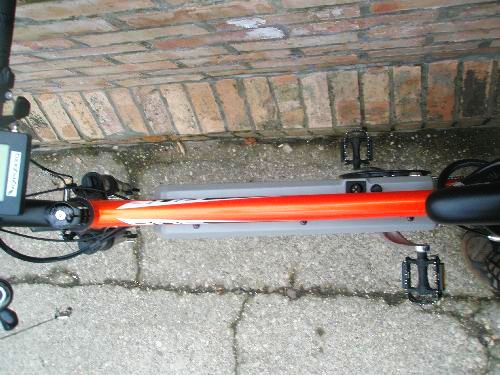

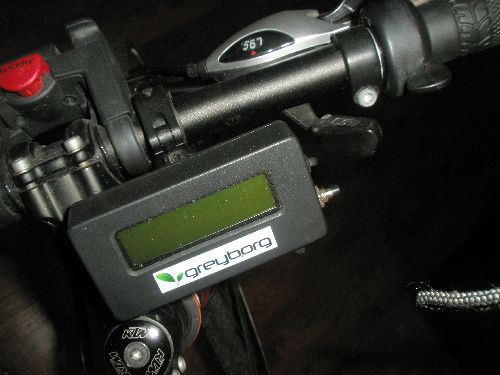

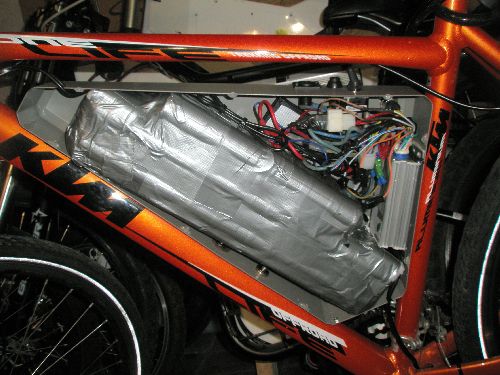

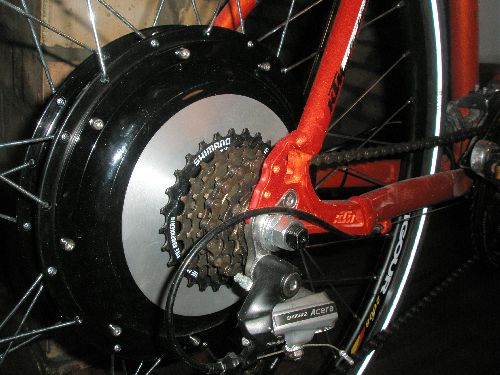

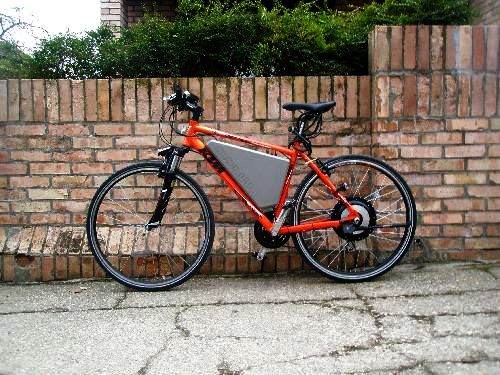

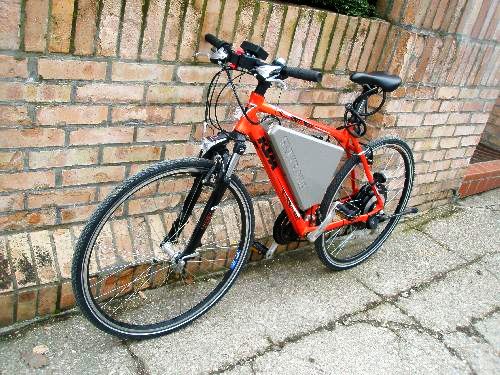

KTM electrified

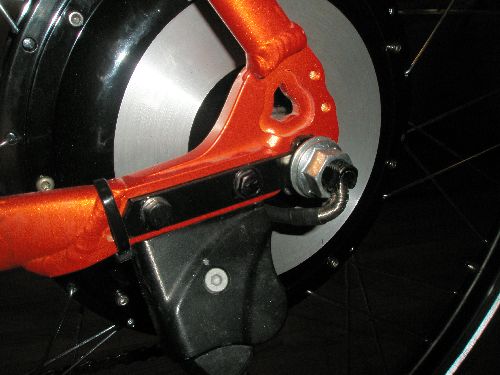

2 x 48V 10Ah, 25A sensorless controller, NC motor.

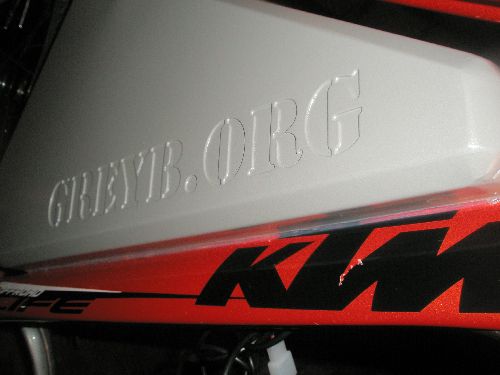

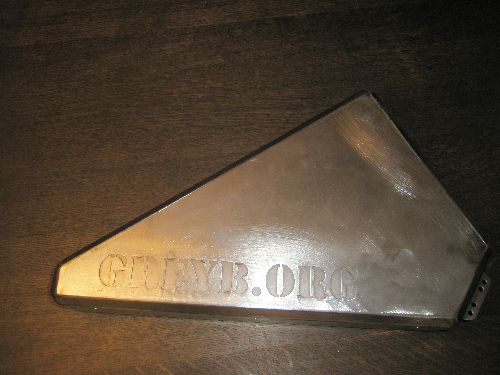

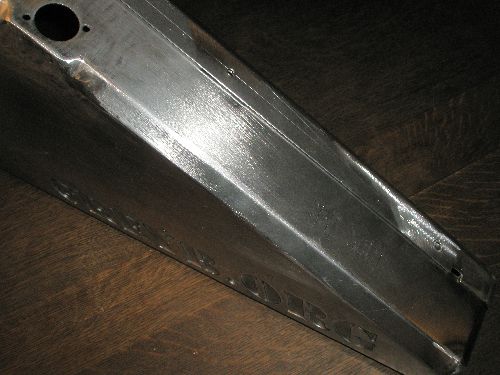

One pack is in framebox and another is in backpack

With two packs this bike have 80km no-pedal range with

average speed 30km/h

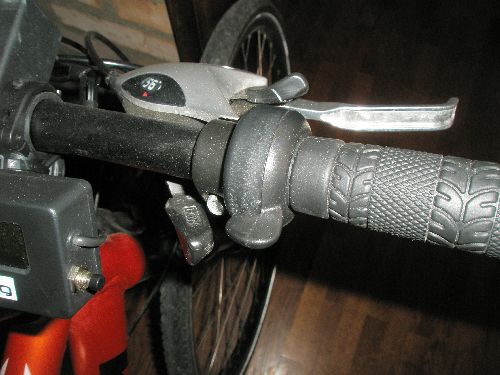

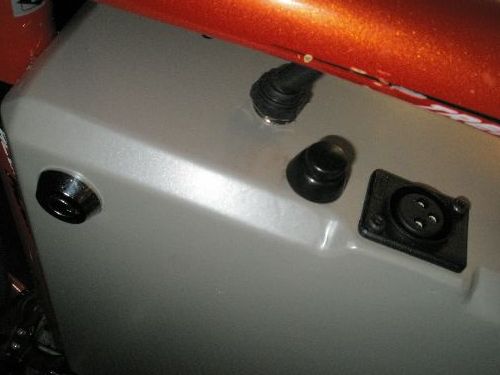

Speed limit switch, Multi connector automaticly detects charger

or second battery pack. Switch for choosing battery packs

and key lock









split

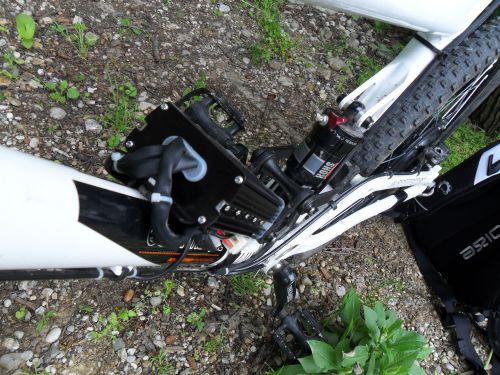

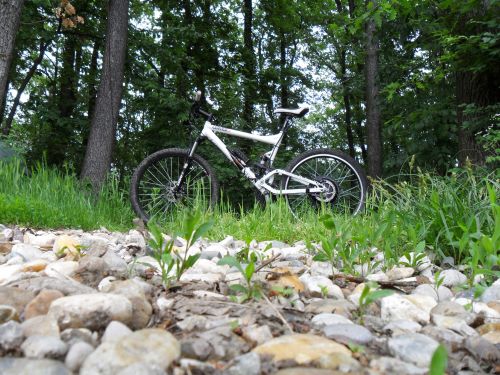

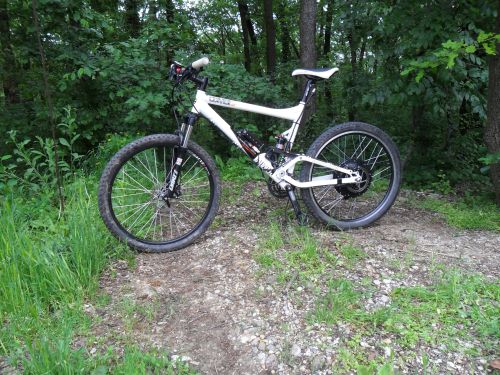

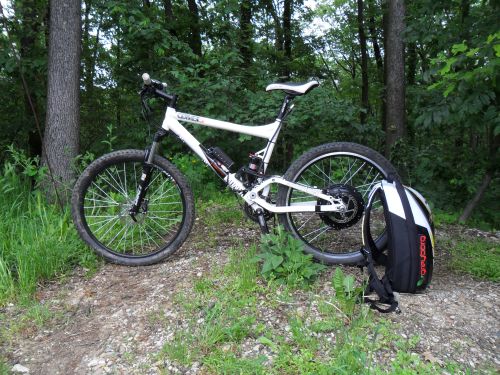

commEncial

48V20Ah in backpack

35A infineon with 4110 fets

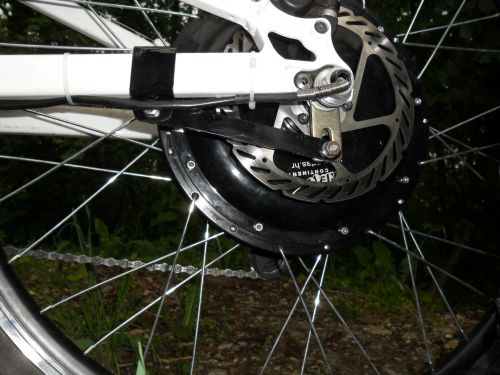

Nine continent motor



split

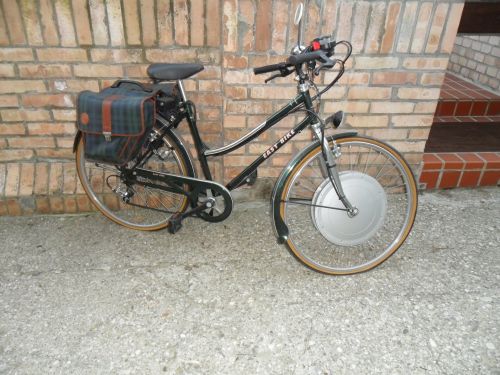

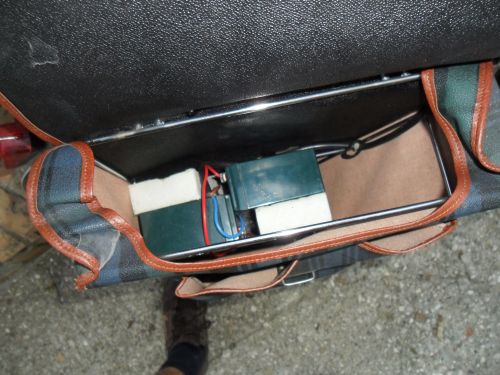

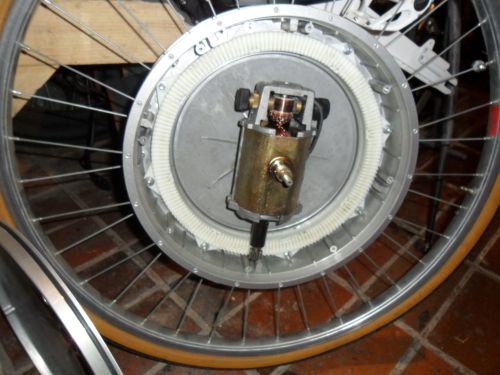

EASY BIKE

Realy special electric bike. some 20 years old. Extremly well made.

Still going good, I just replaced the batteries.

Unknown producer probably from Niederland.

I realy like this bike.





split

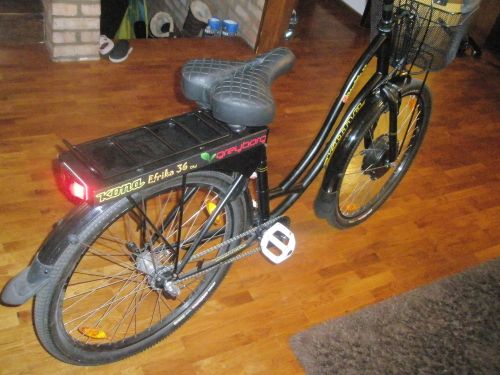

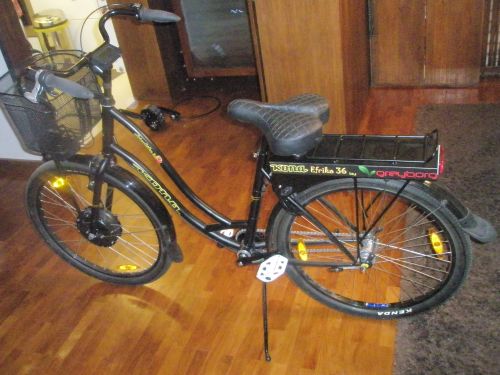

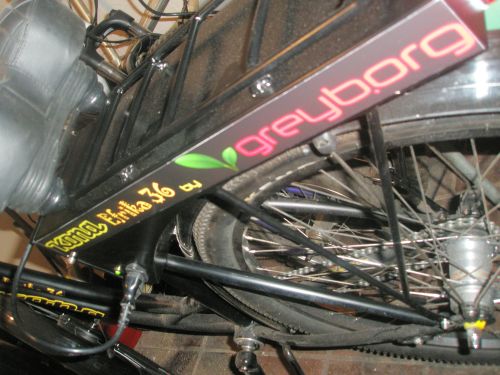

Kona Efrika 36

36V10Ah lithium

22A controller

Custom made front motor, stator plates and covers from crystalyte 408,

14 turns, double the number of magnets, 90mm dropout width.

Schlumpf drive + 3 speed shimano hub gears

Can be crancked up to 70km/h





split

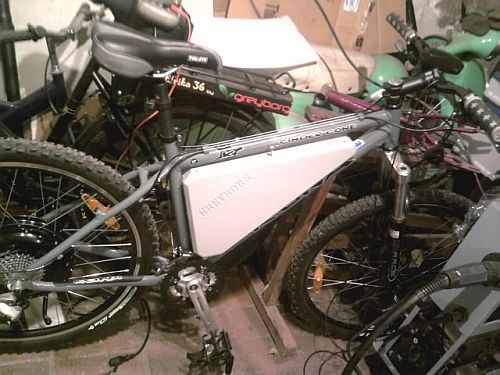

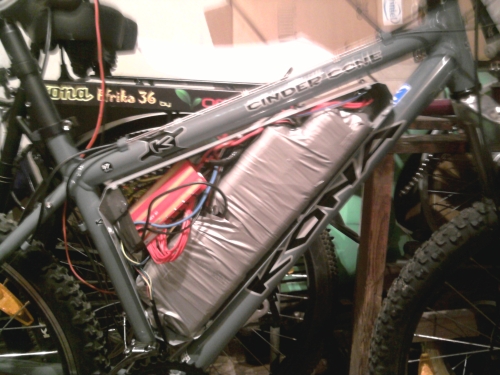

KONA CINDER CONE 17"

Small frame fited with custom made box with controller, bms,

and 48V10AH headway lithium.

Look in Videos for details
